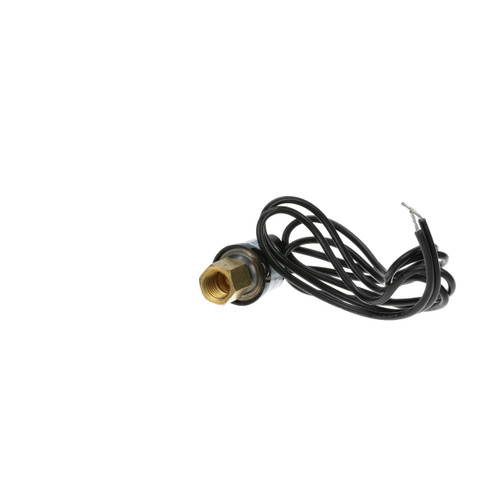

Automatic Reset High, Low & Condenser Fan Cycling Pressure Switches. FAN CYCLING LO-PRES. OPEN 170 PSI, CLOSE 250 PSI, +/- 15PSI High pressure SPST open on pressure rise Low pressure SPST open on pressure fall Condenser fan cycling SPST open on pressure fall. 1/4" female SAE connection Snap acting SS hermetically sealed sensor (SHP, SLP & SFC) Small size and light weight for direct mounting Excellent set point repeatability/stability Pressure range: 0 to 650 PSI, Burst pressure: 5000 PSI Life @ rated load: 100,000 cycles Rated voltage: 50/60 Hz., 24/120/240 V (6 RLA, 36 LRA) Temperatures: ambient 20°F to 176°F (-30°C to 80°C) Fluid 60°F to 250°F (-50°C to 120°C)
Available Locations: Lumberton, NJ
Specifications: 0.12 LBS. Height (in) : 2 Length (in) : 5.25 Psi : 0 to 650 Voltage (V AC) : 24/120/240 Width (in) : 3 #: 421806
Replaces Part Numbers: Unic: SFC170250
Available Locations: Lumberton, NJ
Specifications: 0.12 LBS. Height (in) : 2 Length (in) : 5.25 Psi : 0 to 650 Voltage (V AC) : 24/120/240 Width (in) : 3 #: 421806
Replaces Part Numbers: Unic: SFC170250
