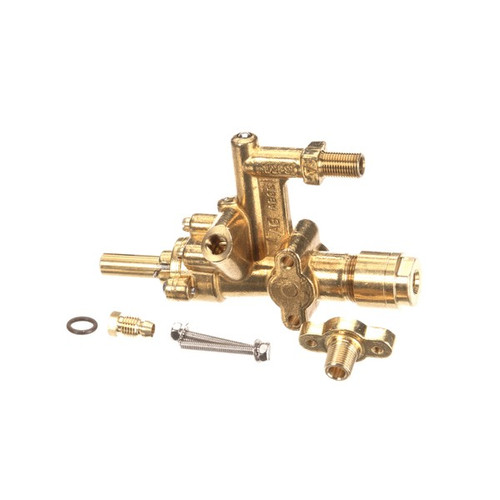

Southbend - 1188220 - Valve, Burner, Rh, Ce

Available Locations: Vernon Hills, ILSpecifications: 1.00 LBS. Height (in) : 1 Length (in) : 5 Width (in) : 3 #: 8007742 Replaces 1182482Replaces Part Numbers: Southbend: -1182482 , 1182482

LP BURNER VALVE, [ 3/8" CCT X 1/4" MPT ] [ ROTATION OFF/HIGH/LOW] PUSH TO TURN, [STEM POSITION DOWN] STEM LENGTH 1-7/16", "C" = 1-5/8". [STEM SIZE .240"] [CTR INLET TO END OF STEM 2.25"] [ ANGLE -...

BLACK BURNER VALVE KNOB [ 2-1/2" DIA ] [ POINTER] [MOUNT .24] [FLAT UP ] SET SCREW DOWN SOUTHBEND RANGE SERIES: 300 & 400 MADE AFTER 10/97.1300 & 1400 MADE AFTER 11/97. 324E, 336A, 336A-1GL,...
